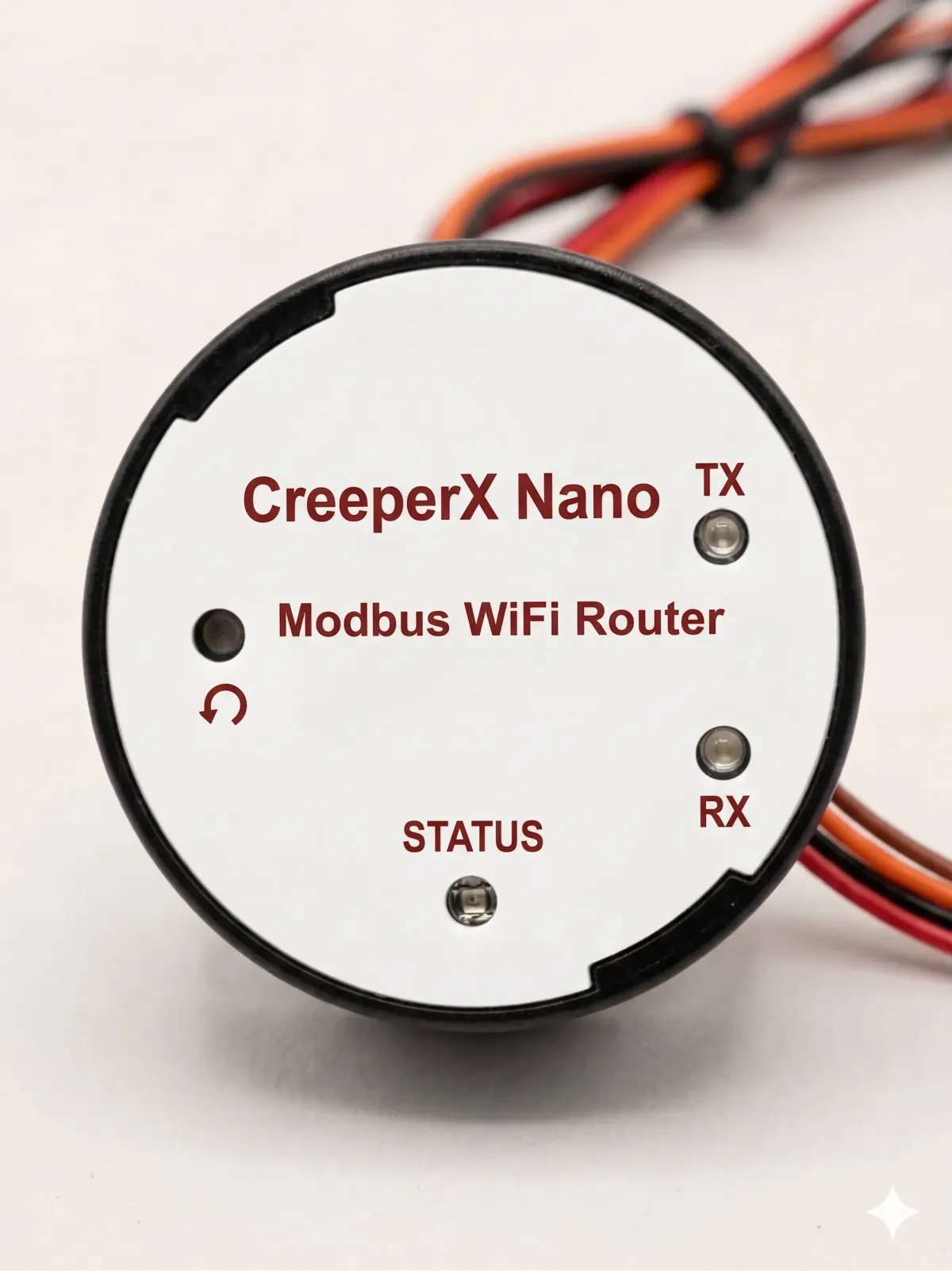

CreeperX Nano
Thumb-sized wireless Modbus RTU to Modbus IP router.
The CreeperX Nano is an ultra-compact, WiFi-enabled Modbus RTU to Modbus IP router for space-constrained BMS and automation installations. It connects a single RS-485 field bus to any WiFi network and is configured entirely through a built-in web interface — no software required.
Key Specs
Technical Specifications
| Hardware | |
| Processor | Microprocessor @ 240 MHz |
| Memory | 8 MB Flash |
| Communication | |
| Wireless | WiFi 802.11 b/g/n |
| RS-485 Ports | 1 × 2-wire RS-485 |
| Protocol | Modbus RTU ↔ Modbus TCP/IP |
| Baud Rates | 9600, 19200, 38400, 76800, 115200 bps |
| Parity | None, Even, Odd |
| Configuration | Web interface |
| Power | |
| Input Voltage | 5V DC |
| Current | 500 mA |
| Mechanical | |
| Enclosure | Eco-friendly ABS/PC |
| Plastic Rating | UL94-V0 (PC/ABS), V2 (PC) |
| Mounting | Panel mount, 20mm screw type |
| Dimensions | 43 × 28.3 × 18.8 mm |
| Environmental | |
| Operating Temperature | 0°C to +85°C |
| Storage Temperature | -20°C to +85°C |
| Humidity | 95% RH, non-condensing |
| Compliance | |
| Emission | EN61000-6-3 |
| Immunity | EN61000-6-2 |
| Safety | EN61010-1 / UL916C |
| Product | EN61326-1, REACH, RoHS compliant |
