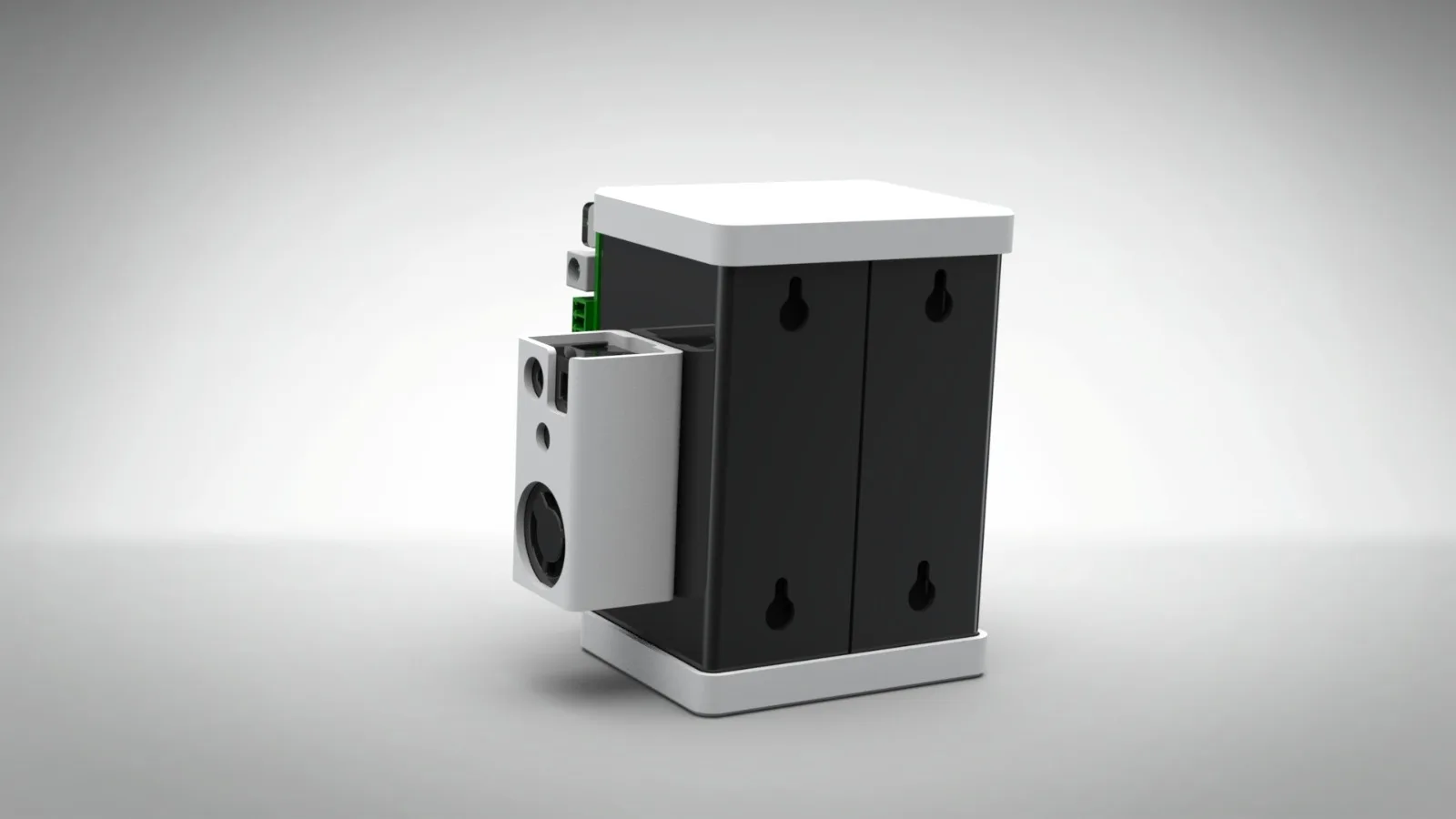

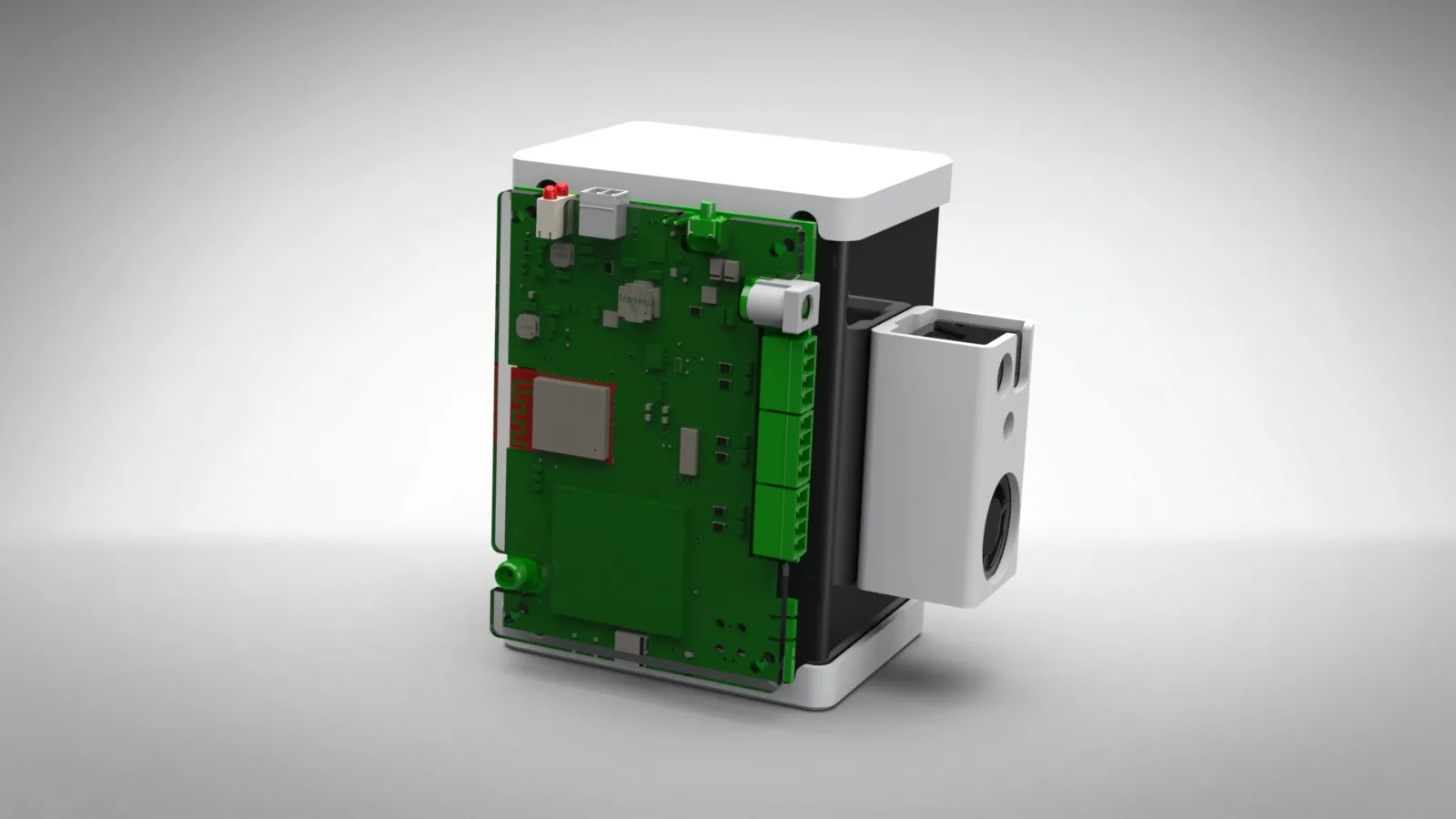

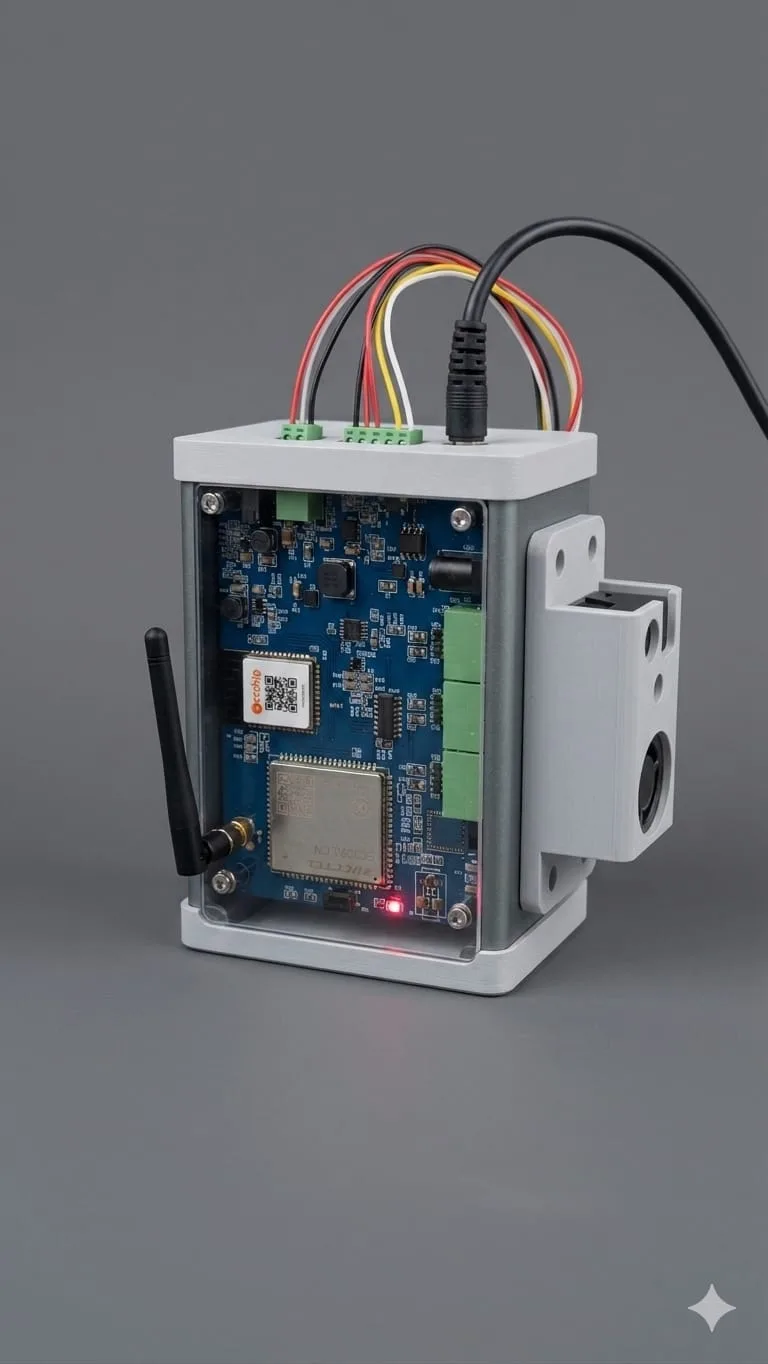

CreeperXSense IoT Hub
Multi-parameter air quality and environmental IoT sensing platform.
The CreeperXSense IoT Hub is an integrated environmental sensing platform that measures PM1.0, PM2.5, PM4.0, PM10, temperature, relative humidity, VOC index, NOx index, and CO₂ concentration in real time. With 4G LTE or WiFi connectivity, on-board battery backup, and up to six distributed external temperature sensors over 1-Wire, it delivers comprehensive environmental monitoring wherever you need it.
Key Specs
Technical Specifications
| Onboard Sensing | |
| Particulates | PM1.0, PM2.5, PM4.0, PM10 concentration |
| Gas | VOC Index, NOx Index, CO₂ concentration |
| Climate | Ambient temperature, relative humidity |
| External Sensors | |
| Interface | 1-Wire |
| Max Sensors | 6 distributed temperature sensors |
| Max Cable Length | Up to 300 metres (with recommended cable) |
| Connectivity | |
| WAN | 4G LTE (Cat-1 / Cat-M / NB-IoT, variant dependent) or WiFi |
| Bluetooth | BLE (proximity config & diagnostics) |
| Local Access | WiFi Access Point mode (no infrastructure required) |
| Protocol | Secure MQTT (TLS-ready, ThingSpeak compatible) |
| Data & Logging | |
| RTC | Dedicated hardware RTC for timestamped logging |
| Local Retention | Minimum 1 week at 5-minute intervals during outage |
| Backfill | Automatic data buffering and retransmission on reconnection |
| Remote Management | OTA firmware upgrades, remote parameter provisioning |
| Power | |
| Primary Input | 5V DC via USB Type-C |
| Battery | 6V, 4.5 Ah sealed lead-acid (SLA) |
| Battery Life | Up to 3 days autonomous operation |
| Power Management | PMIC with load sharing, automatic switchover, overcharge/discharge protection |
| Protection | Reverse polarity, TVS surge immunity, ESD, short-circuit & overcurrent protection |
| Reliability | |
| Watchdog | Independent hardware watchdog for fail-safe recovery |
