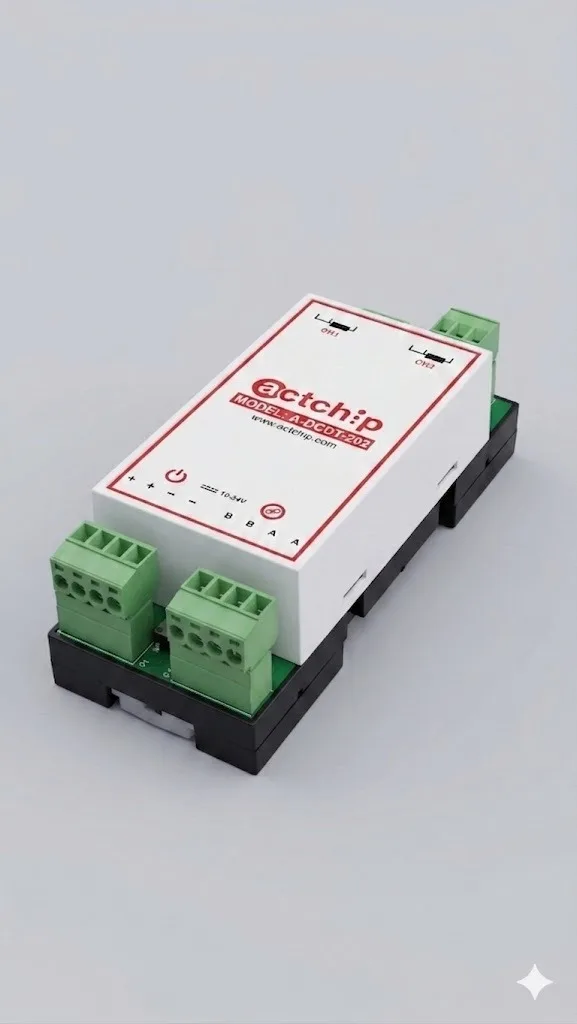

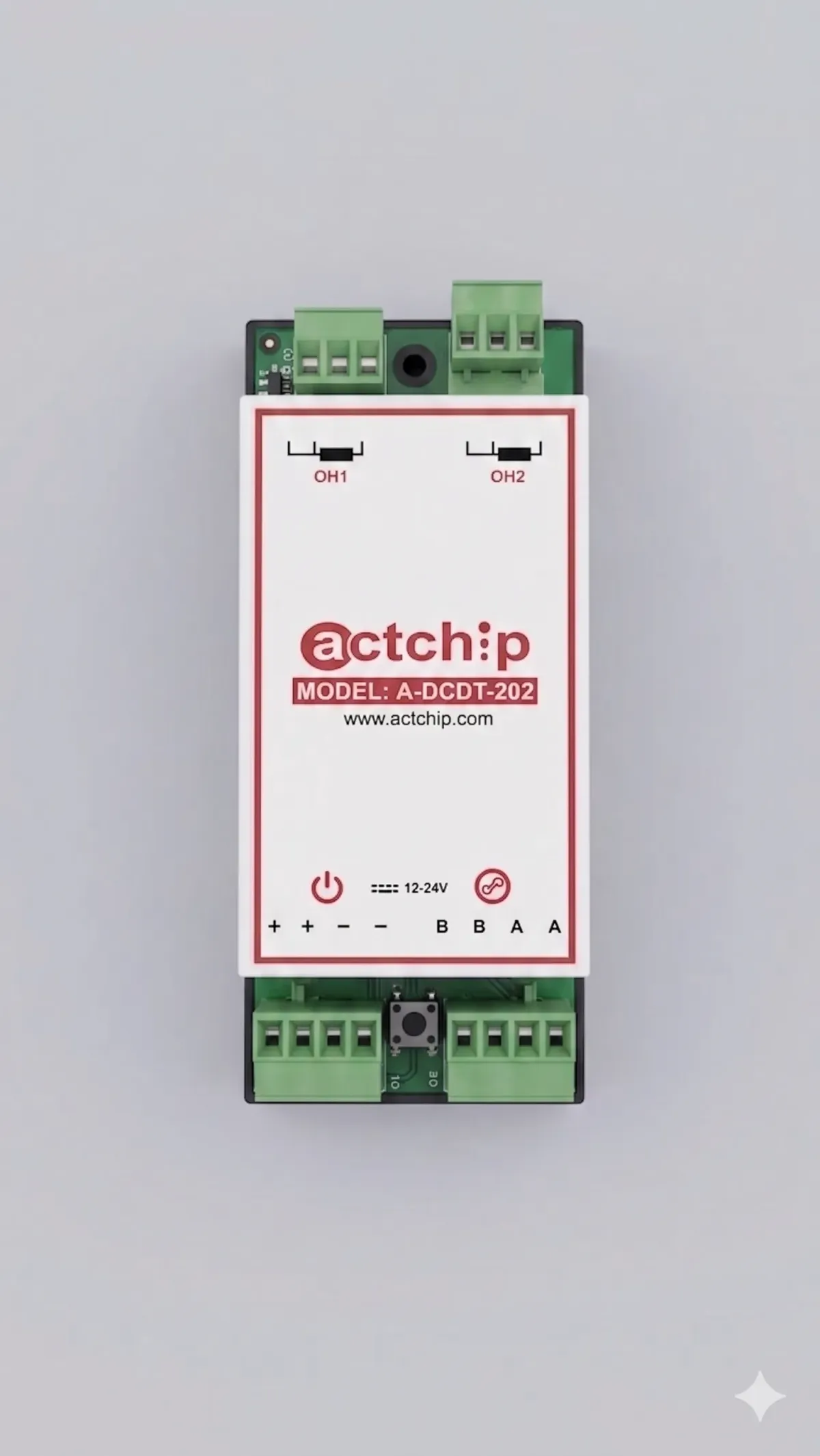

CreeperXSense RTD
Dual-channel PT-100 RTD transmitter with RS-485 Modbus output.
The CreeperXSense RTD is a high-accuracy, dual-channel PT-100 RTD temperature transmitter that outputs readings over RS-485 using the Modbus RTU protocol. With ±0.01°C accuracy and ultra-low power consumption at just 10mA, it is ideal for industrial temperature monitoring applications where precision and bus compatibility matter.
Key Specs
Technical Specifications
| Sensor | |
| Sensor Type | PT-100 RTD |
| Channels | 2 |
| Accuracy | ±0.01°C |
| Communication | |
| Interface | RS-485 |
| Protocol | Modbus RTU |
| Baud Rate | 9600 bps |
| Data Format | 8N1 (8 data bits, no parity, 1 stop bit) |
| Flow Control | Off |
| Modbus Register Map | |
| RTD Temp CH1 | 40001 – 40002 |
| RTD Temp CH2 | 40003 – 40004 |
| Slave ID | 40012 |
| Power | |
| Supply Voltage | 9–30V DC |
| Current | 10 mA |
| Environmental | |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | 0°C to +80°C |
| Humidity | 20–95% RH, non-condensing |
Related Products

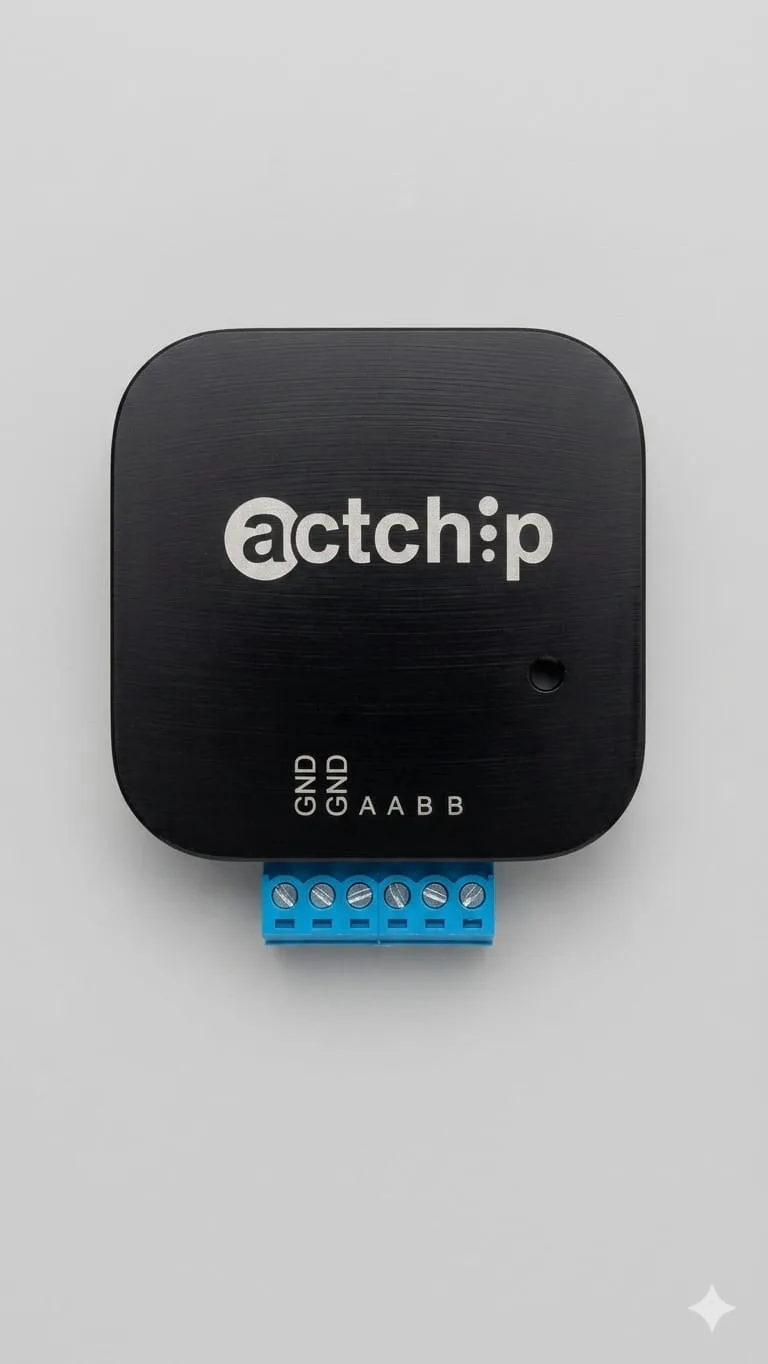

CreeperLeaf USB-RS485
Industrial-grade isolated USB to RS485/RS422 converter.
CreeperX ProMax
Multi-protocol Modbus and BACnet gateway for BMS integration.

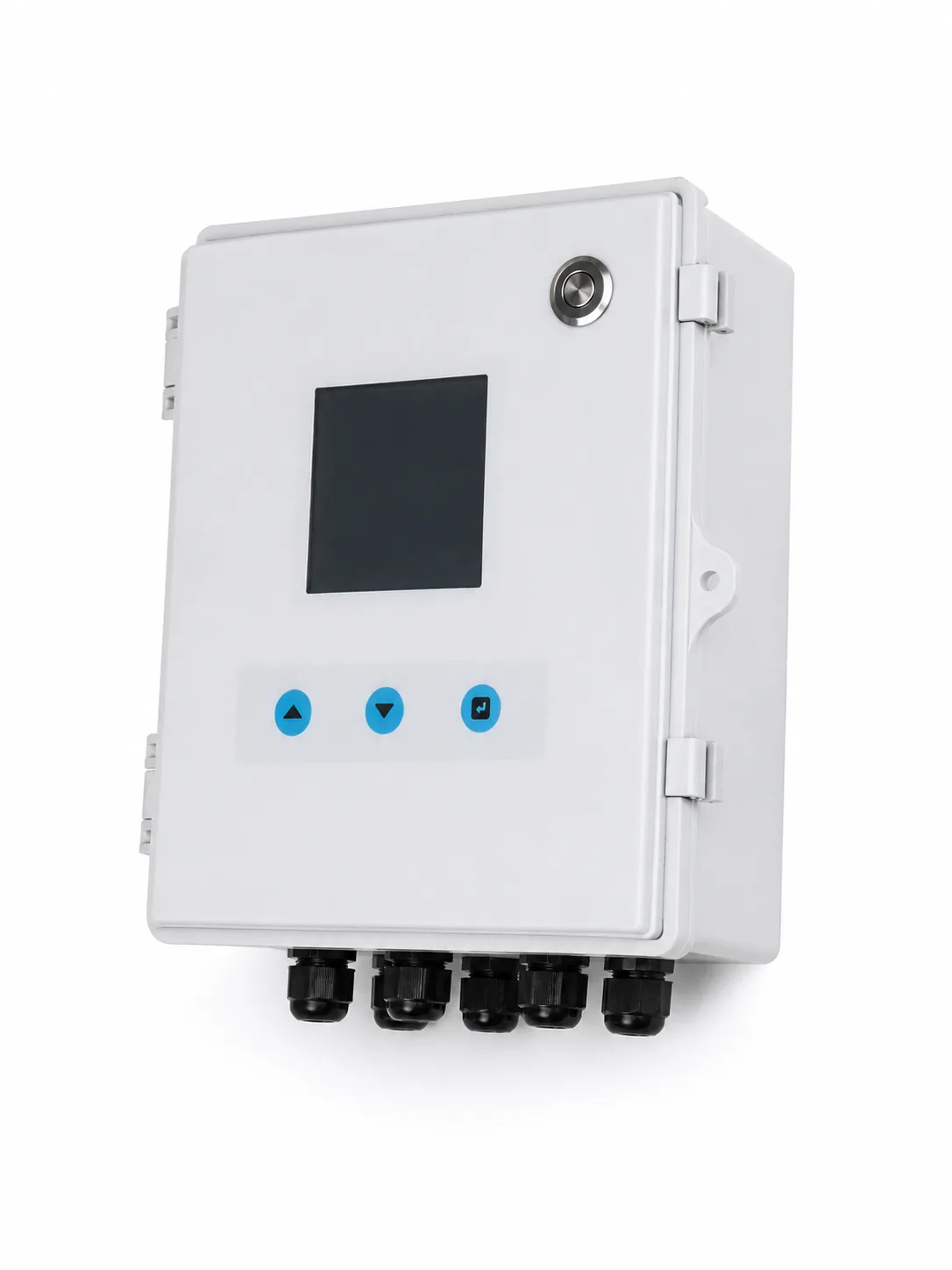

CreeperX IIoT Controller
Industrial IoT edge controller with multi-interface connectivity and configurable I/O.

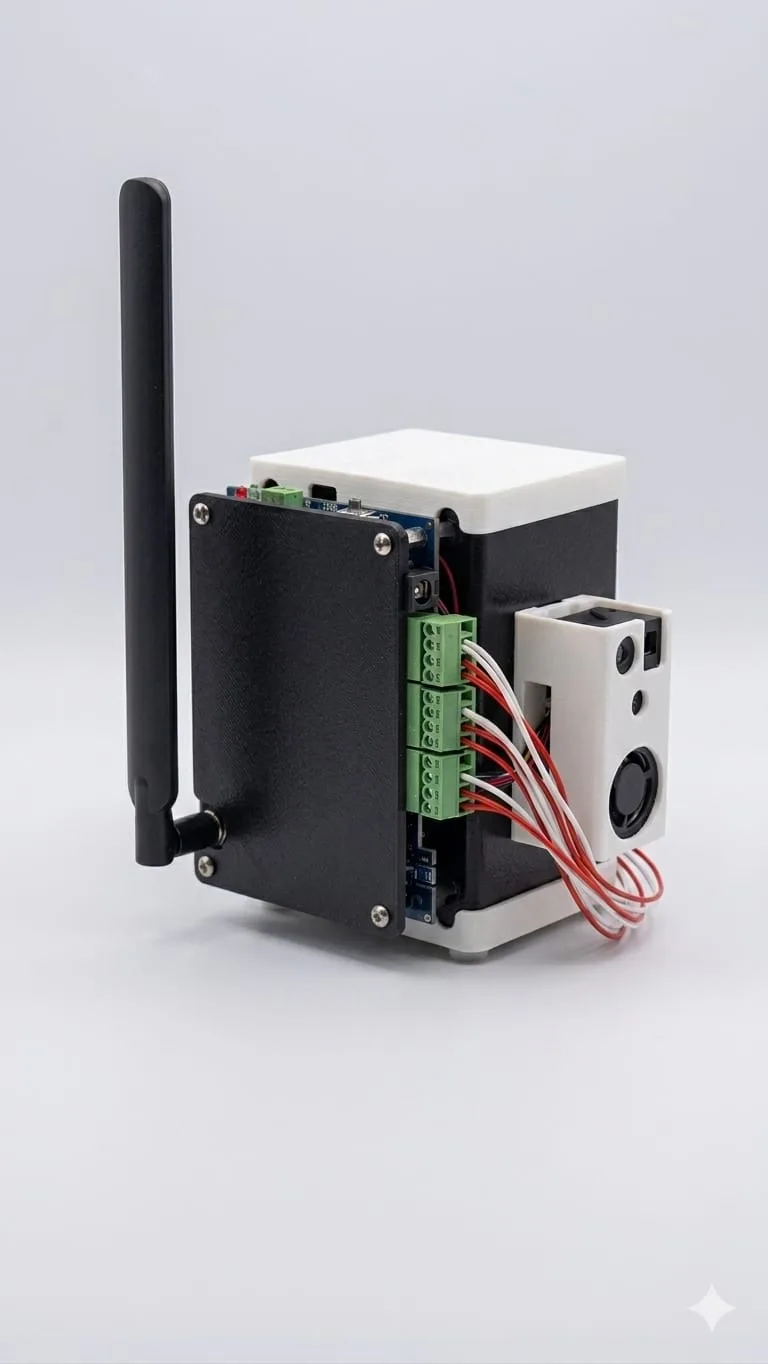

CreeperXSense IoT Hub
Multi-parameter air quality and environmental IoT sensing platform.

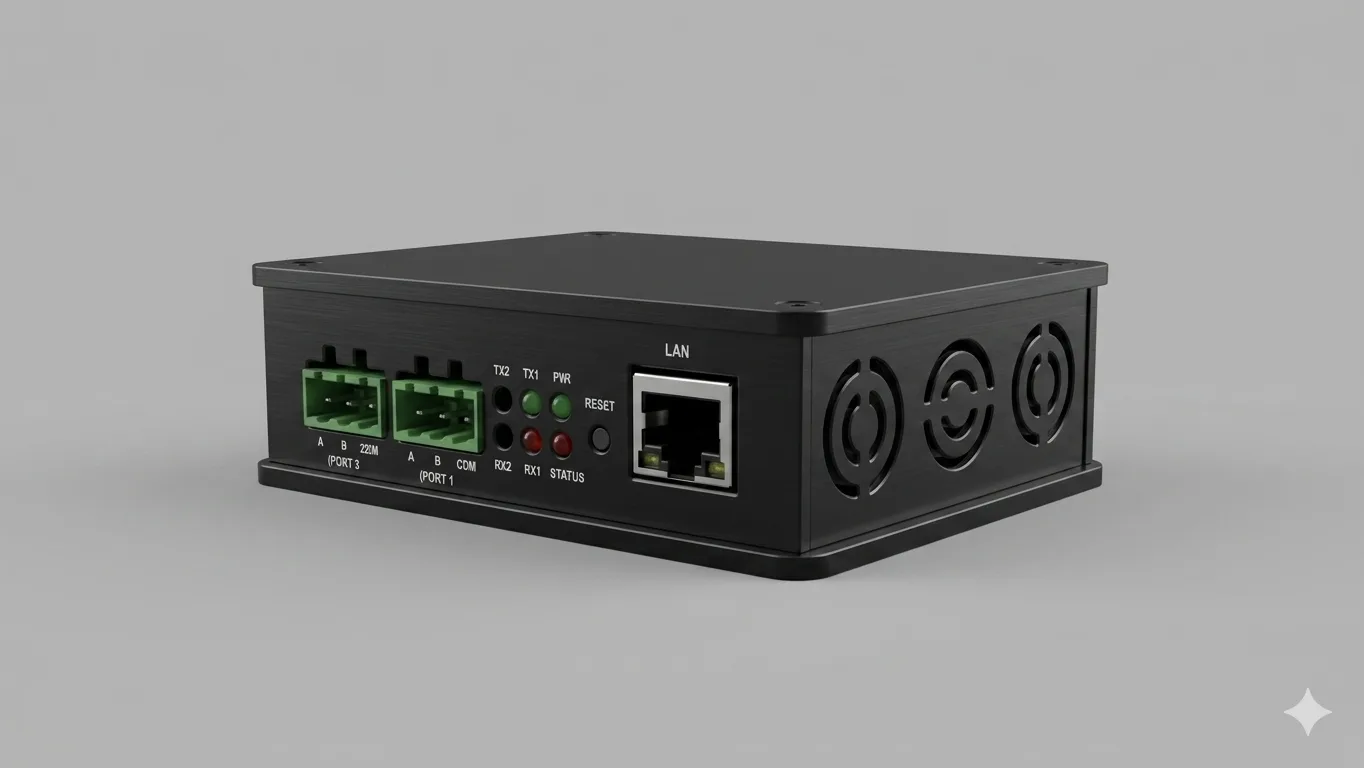

CreeperX Mini
Compact DIN-rail Modbus RTU to Modbus IP router.

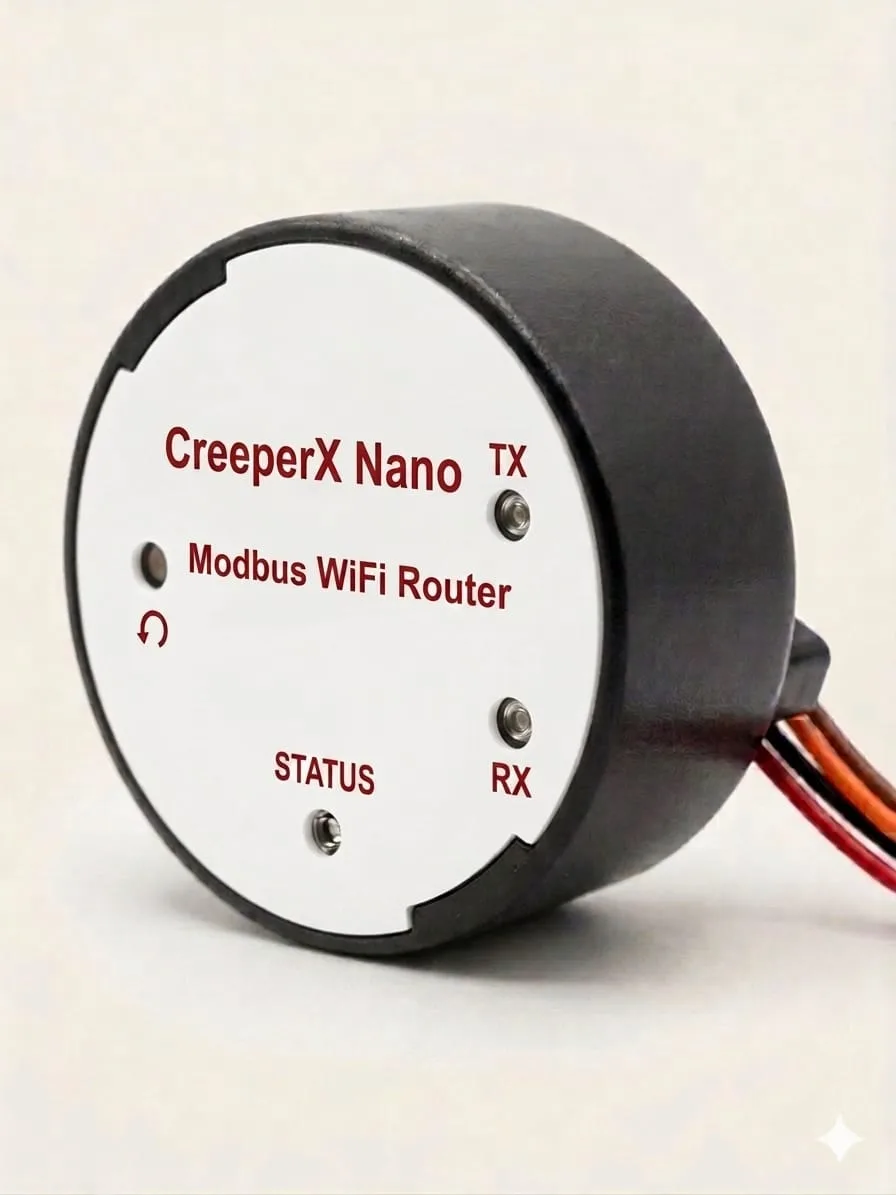

CreeperX Nano
